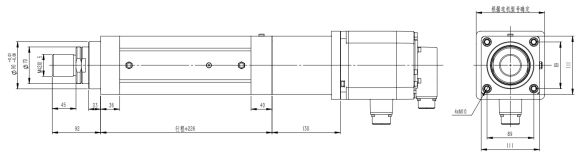

- 行程
- 行程Stroke
- 根据电机…选定（原图小字）
- 原图分辨率不足以确认省略处的每个字；尺寸数字保留在原图，不推算。Select according to the motor (small-text note in the original drawing) — The source resolution does not support certain transcription of every character in this note. Dimension numbers remain in the original drawing and are not inferred.

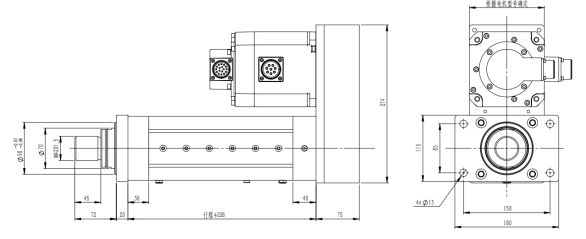

- 行程
- 行程Stroke
- 根据电机…选定（原图小字）
- 原图分辨率不足以确认省略处的每个字；尺寸数字保留在原图，不推算。Select according to the motor (small-text note in the original drawing) — The source resolution does not support certain transcription of every character in this note. Dimension numbers remain in the original drawing and are not inferred.

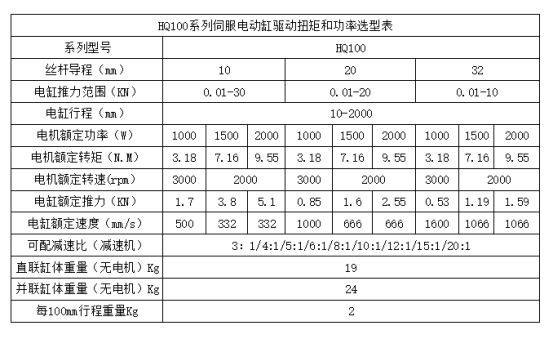

HQ100系列伺服电动缸驱动扭矩和功率选型表HQ100 series: servo electric cylinder drive torque and power selection table
可左右滚动查看全部配置。Scroll horizontally to view all configurations.
| 系列型号Series model | HQ100 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 丝杆导程（mm）Screw lead (mm) | 10 | 20 | 32 | ||||||
| 电缸推力范围（kN）Cylinder thrust range (kN) | 0.01–30 | 0.01–20 | 0.01–10 | ||||||
| 电缸行程（mm）Cylinder stroke (mm) | 10–2000 | ||||||||
| 电机额定功率（W）Rated motor power (W) | 1000 | 1500 | 2000 | 1000 | 1500 | 2000 | 1000 | 1500 | 2000 |
| 电机额定转矩（N·m）Rated motor torque (N·m) | 3.18 | 7.16 | 9.55 | 3.18 | 7.16 | 9.55 | 3.18 | 7.16 | 9.55 |
| 电机额定转速（rpm）Rated motor speed (rpm) | 3000 | 2000 | 3000 | 2000 | 3000 | 2000 | |||
| 电缸额定推力（kN）Rated cylinder thrust (kN) | 1.7 | 3.8 | 5.1 | 0.85 | 1.6 | 2.55 | 0.53 | 1.19 | 1.59 |
| 电缸额定速度（mm/s）Rated cylinder speed (mm/s) | 500 | 332 | 1000 | 666 | 1600 | 1066 | |||
| 可配减速比（减速机）Available gearbox reduction ratios | 3:1 / 4:1 / 5:1 / 6:1 / 8:1 / 10:1 / 12:1 / 15:1 / 20:1 | ||||||||
| 直联缸体重量（无电机）（kg）Inline cylinder body mass, without motor (kg) | 19 | ||||||||
| 并联缸体重量（无电机）（kg）Parallel cylinder body mass, without motor (kg) | 24 | ||||||||
| 每100 mm行程重量（kg）Mass per 100 mm of stroke (kg) | 2 | ||||||||
原表的合并单元格在此按每个配置列重复展开；列顺序与原图一致。数值按原图抄录，未按计算公式改写。Merged cells in the source table are repeated across their applicable configuration columns. Column order follows the source image. Numerical values are transcribed as printed, without recalculation.
查看原始参数表图片View the original specification image
告诉我们数量、工况或配置要求，我们会整理并回复。Tell us the quantity, operating conditions or configuration you need. Our team will review your request.
产品规格、可供性与交期以正式确认为准。Product specifications, availability and lead times require confirmation.
