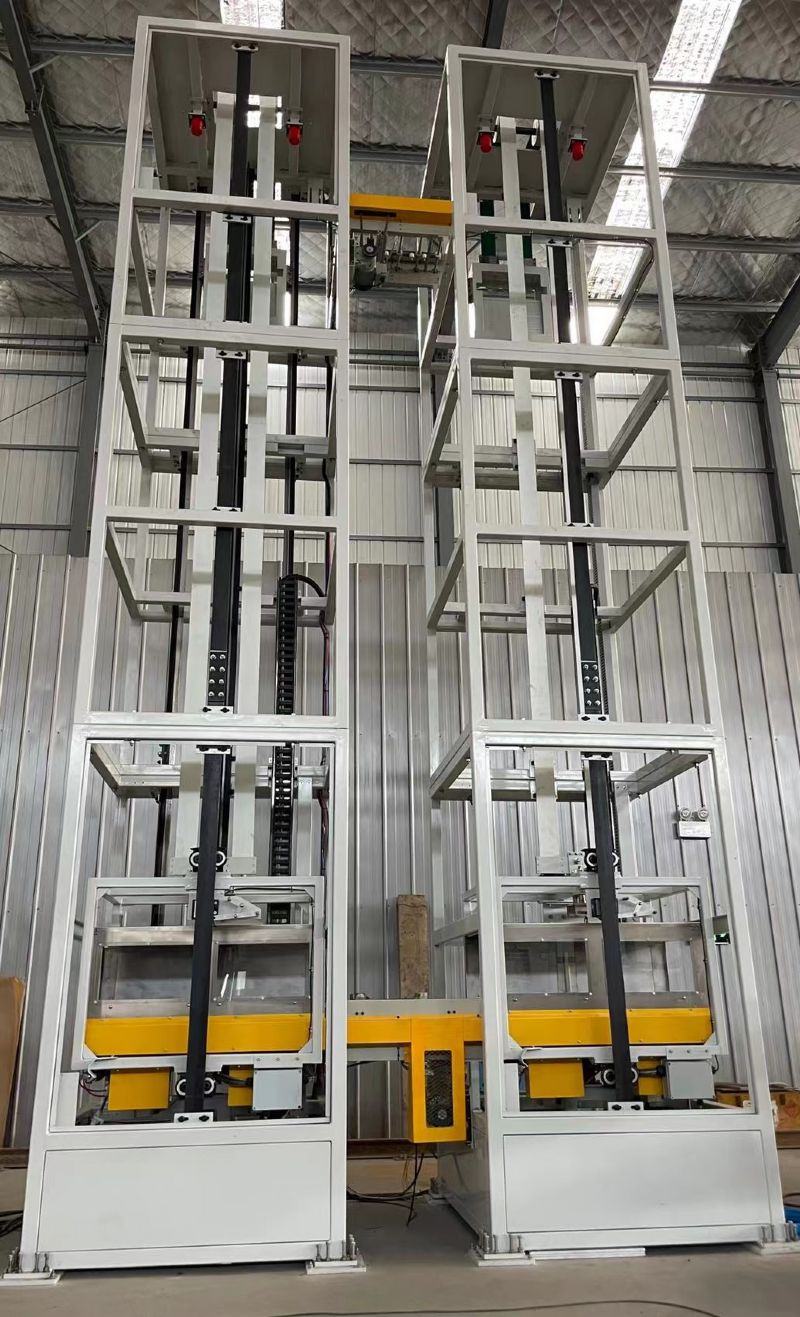

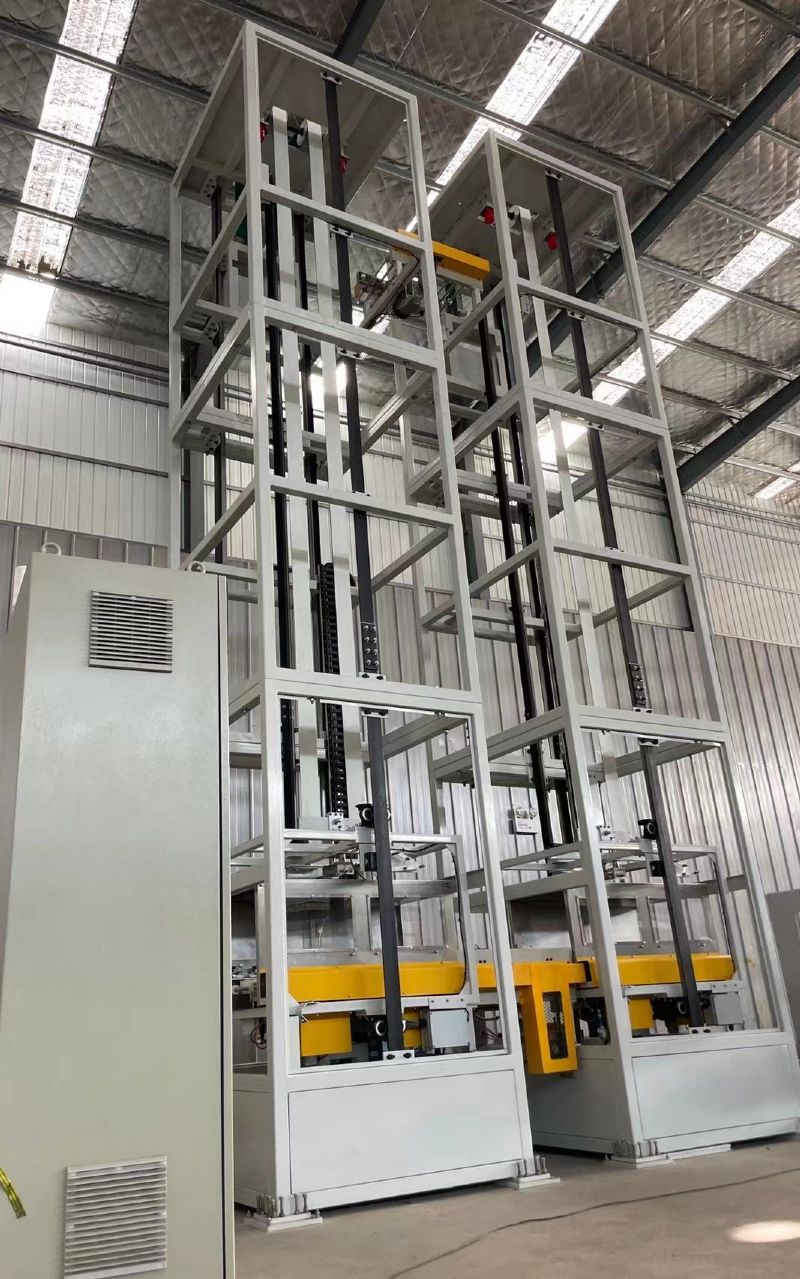

该设备结构合理、运行平稳、高速静音、安全可靠，承载量可达3吨，提升高度可达20米，安装维护方便实用，是替代货物电梯理想的货物输送设备。标准化的桥箱接口可方便选择各种包装箱、托盘、卡板等灵活多样的工件形式。该设备配置多种防坠、互锁等安全装置，从而保证人身货物安全，可广泛应用于汽车、食品、烟草、邮政、化工、轻工、机械、电子、食品、仓储物流等自动化生产行业。This equipment combines a well-designed structure with smooth, quiet, high-speed operation, safety and reliability. It supports loads of up to 3 tonnes and lifting heights of up to 20 metres. Convenient to install and maintain, it is an ideal goods-handling alternative to a freight elevator. Standardized carriage interfaces readily accommodate a wide range of load formats, including packaging boxes, pallets and skids. Multiple safety devices, including fall-arrest mechanisms and interlocks, protect both personnel and goods. The equipment is suitable for automated production in the automotive, food, tobacco, postal, chemical, light manufacturing, machinery and electronics industries, as well as warehousing and logistics.
产品选型Product Selection
外形尺寸Overall dimensions
可左右滚动查看全部配置。Scroll horizontally to view all configurations.
| 型号Model | 轿厢内有效长度（mm）Usable internal platform length (mm) | 轿厢内有效宽度（mm）Usable internal platform width (mm) | 尺寸A（mm）Dimension A (mm) | 尺寸B（mm）Dimension B (mm) | 最大载重（kg）Maximum load (kg) |
|---|---|---|---|---|---|
| HZSJ-6 | 600 | 875 | 1280 | ≤500 | |
| HZSJ-9 | 900 | 1175 | 1580 | ≤800 | |
| HZSJ-12 | 1200 | 1525 | 2020 | ≤1500 | |
| HZSJ-15 | 1500 | 1825 | 2320 | ≤2000 | |
| HZSJ-18 | 1800 | 2180 | 2700 | ≤3000 | |
| HZSJ-21 | 2100 | 2480 | 3000 | ≤3000 | |
| HZSJ-30 | 3000 | 2000 | 2500 | 3000 | ≤3000 |
| HZSJ-40 | 4000 | 2000 | 4400 | 3000 | ≤3000 |
| HZSJ-50 | 5000 | 3000 | 5500 | 4000 | ≤3000 |
| HZSJ-60 | 6000 | 3000 | 6500 | 4000 | ≤3000 |
技术参数Technical specifications
可左右滚动查看全部配置。Scroll horizontally to view all configurations.
| 序号No. | 项目Item | 参数Specification |
|---|---|---|
| 1 | 输送单元载重（kg）Conveying unit load capacity (kg) | 3000 |
| 2 | 升降速度（m/min）Lifting speed (m/min) | 10–90（根据载荷定）10–90 (depending on load) |
| 3 | 提升高度（m）Lifting height (m) | 最大20Maximum 20 |
| 4 | 搭载输送机（选配）Onboard conveyor (optional) | 载重根据客户需求设计Load capacity designed to customer requirements |
| 4 | 搭载输送机（选配）Onboard conveyor (optional) | 输送速度根据客户需求设计Conveying speed designed to customer requirements |
| 4 | 搭载输送机（选配）Onboard conveyor (optional) | 输送机尺寸根据输送物大小设计Conveyor dimensions designed for the size of the goods |
| 4 | 搭载输送机（选配）Onboard conveyor (optional) | 可选择链条线、倍速线、皮带线、滚筒线、伸缩叉等Options include chain conveyors, double-speed chain conveyors, belt conveyors, roller conveyors and telescopic forks |
| 5 | 电源Power supply | 380 V / 3相 / 50 Hz380 V / 3-phase / 50 Hz |
| 6 | 输送方向Conveying direction | C型 / Z型 / E型 / F型Type C / Type Z / Type E / Type F |
| 7 | 传动方式Drive method | 链条传动 / 皮带传动Chain drive / Belt drive |
| 8 | 电机功率（kW）Motor power (kW) | 根据客户需求设计Designed to customer requirements |
原表第4项合并行按四项说明展开；描述性列标题为转写时添加。The four statements under merged item 4 are expanded into separate rows. Descriptive column headings are supplied for this transcription.
备注：以上参数仅供常规选型参考，本公司可根据行业特性及客户具体需求提供专项解决方案，详情请咨询销售工程师。Note: These parameters are for reference in standard selection only. The company can provide dedicated solutions based on industry characteristics and specific customer requirements. Please consult a sales engineer for details.
HZSJ-30的尺寸A原图为2500 mm，已照录，不根据轿厢长度推算修正。The source prints dimension A as 2500 mm for HZSJ-30. This is preserved as printed rather than inferred from the platform length.

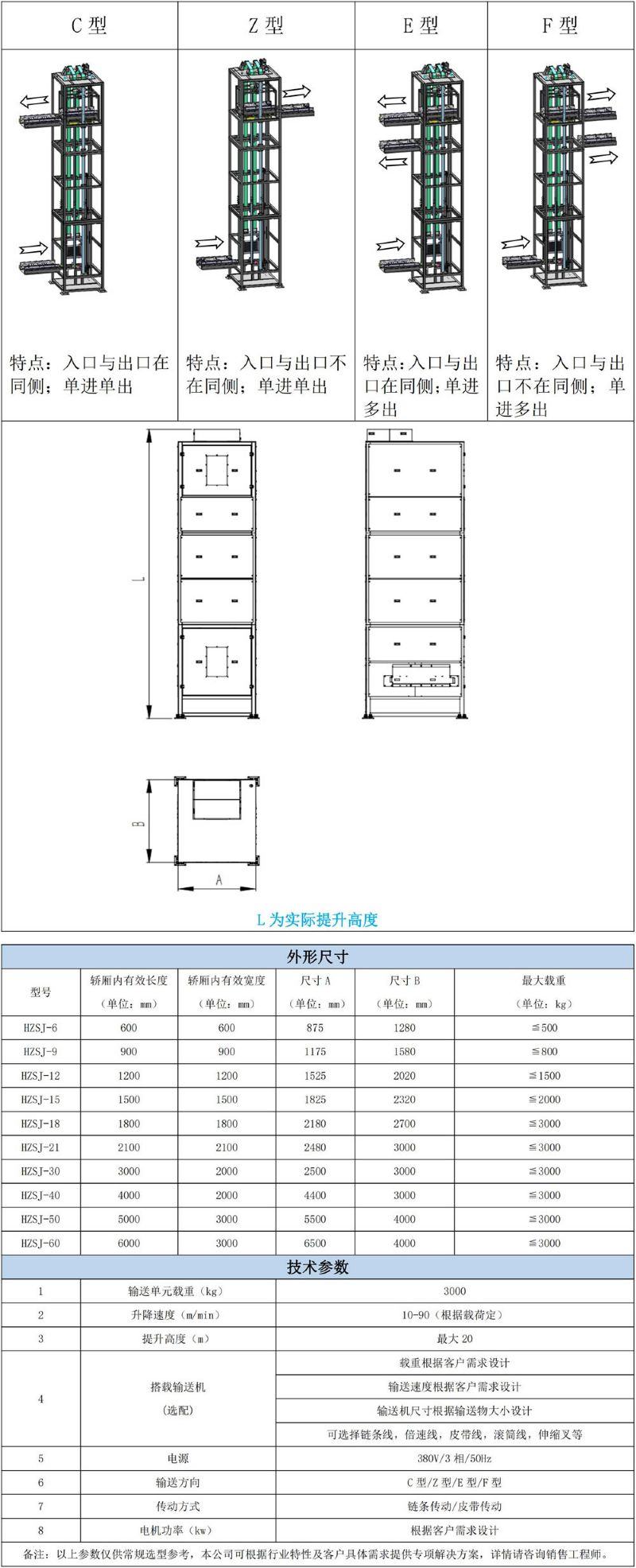

查看原始参数表图片View the original specification image
告诉我们数量、工况或配置要求，我们会整理并回复。Tell us the quantity, operating conditions or configuration you need. Our team will review your request.
原发布日期：Originally published: 2023-08-14
